Case study · Horley, Surrey · RH6 7AY

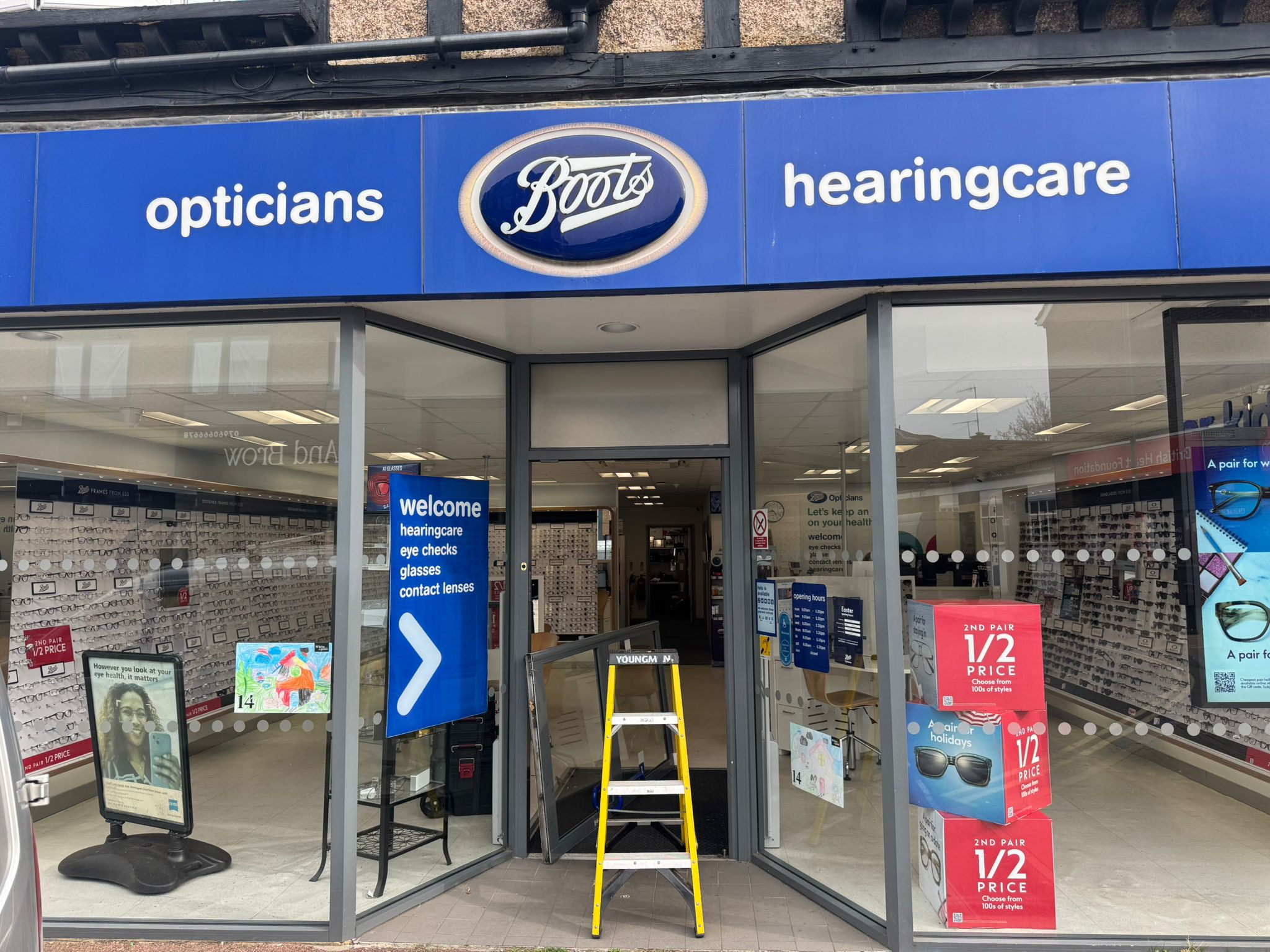

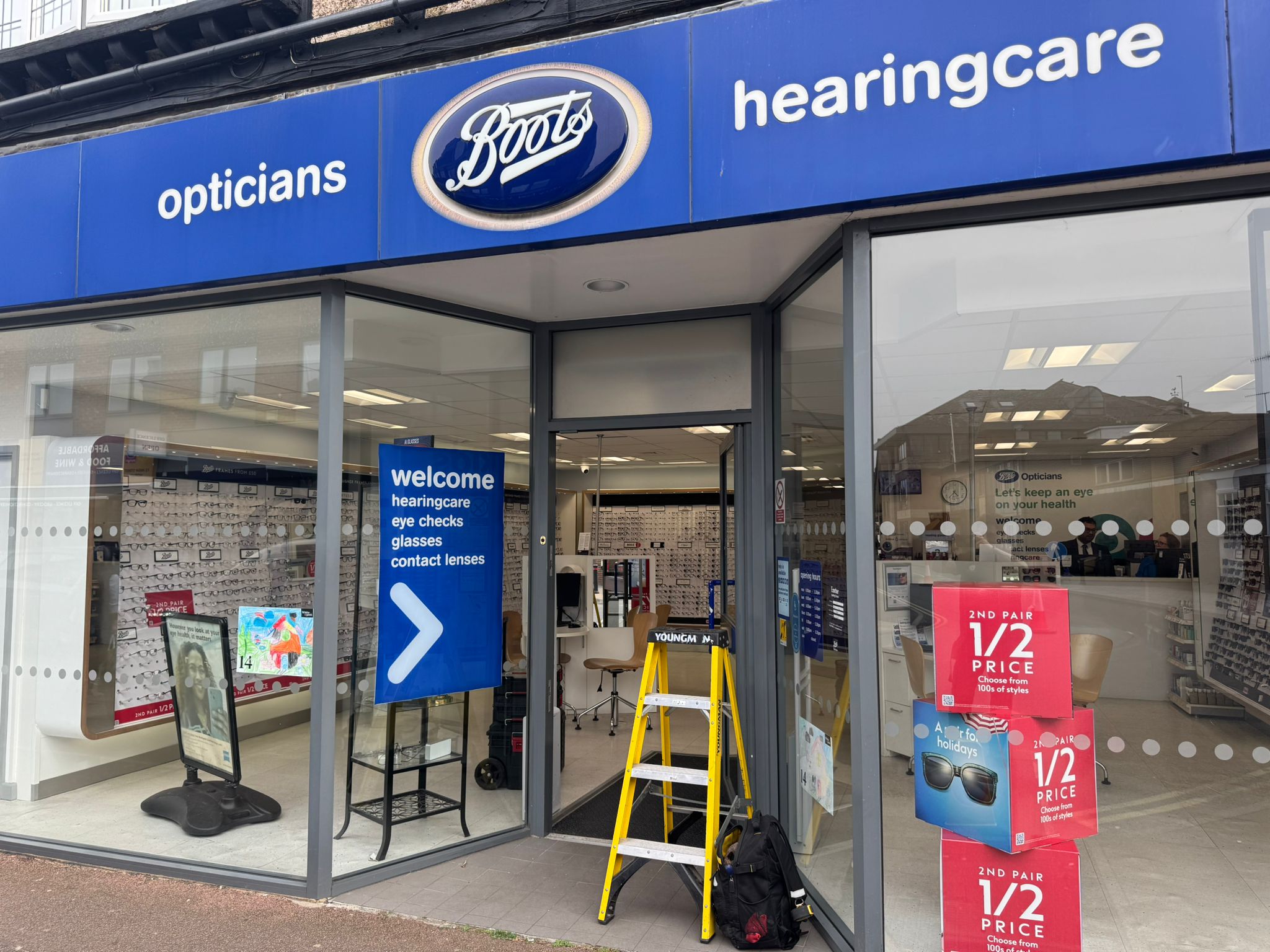

Why this Boots Opticians entrance door needed a full transom, pivot and drive arm overhaul

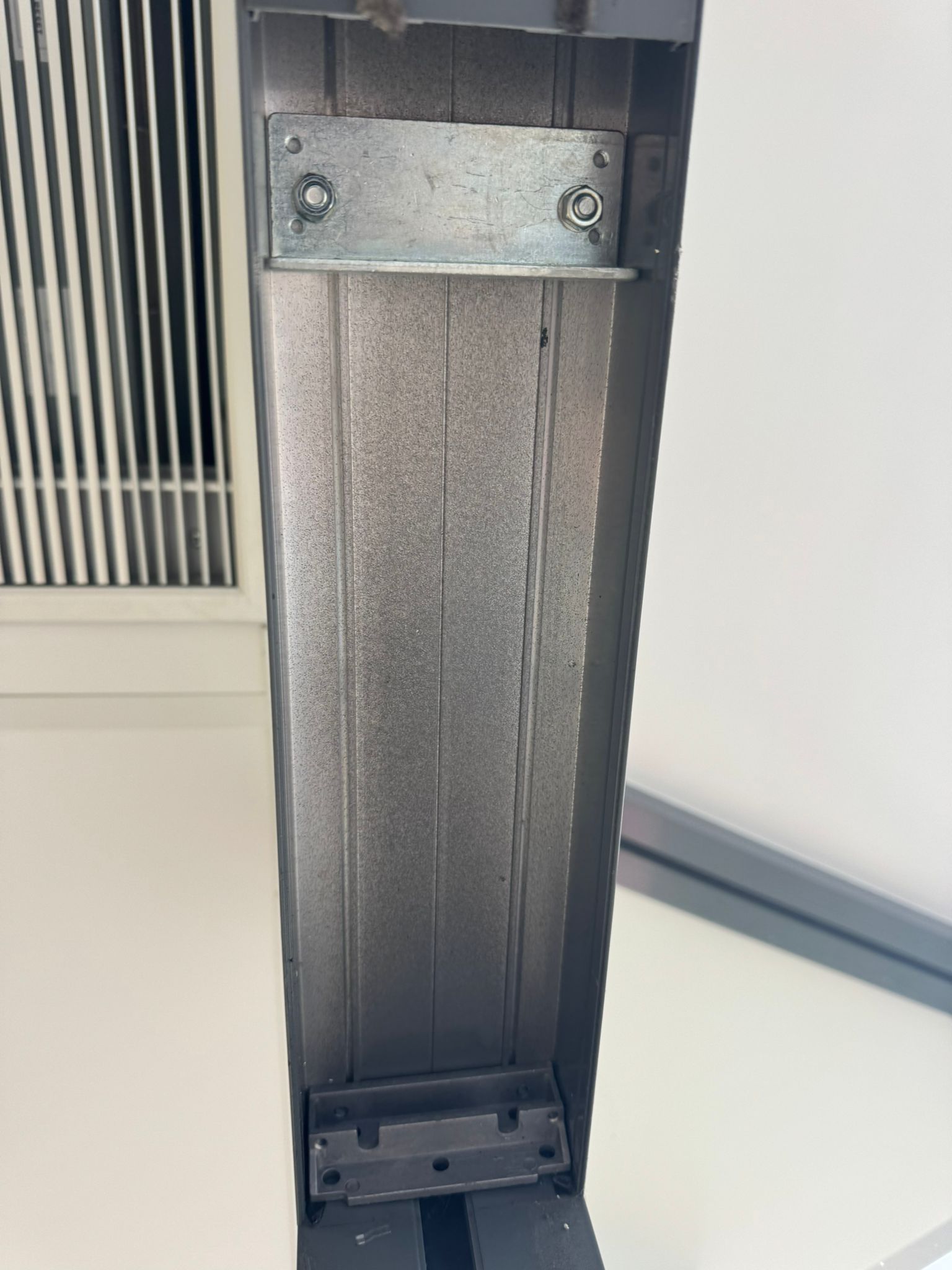

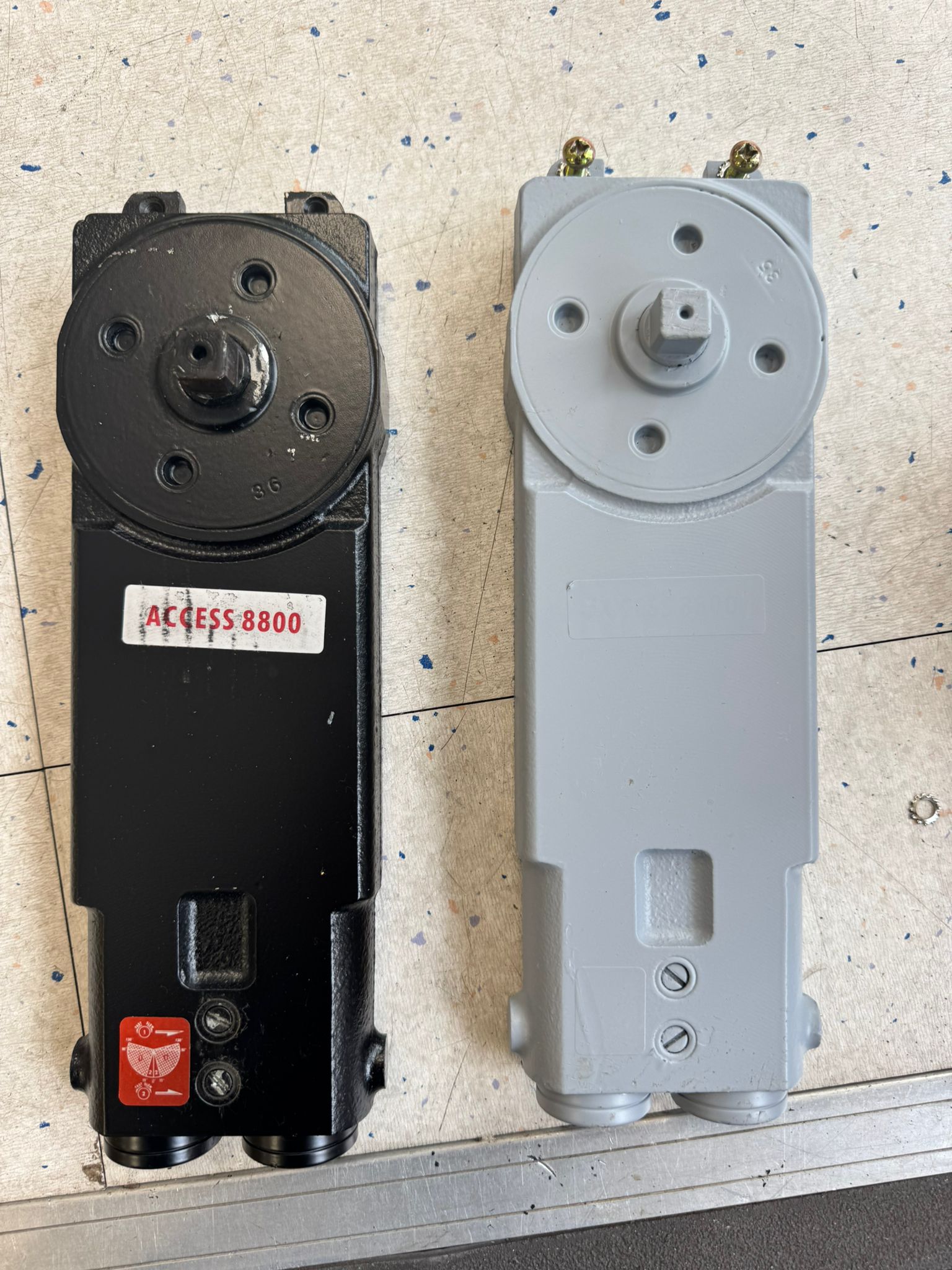

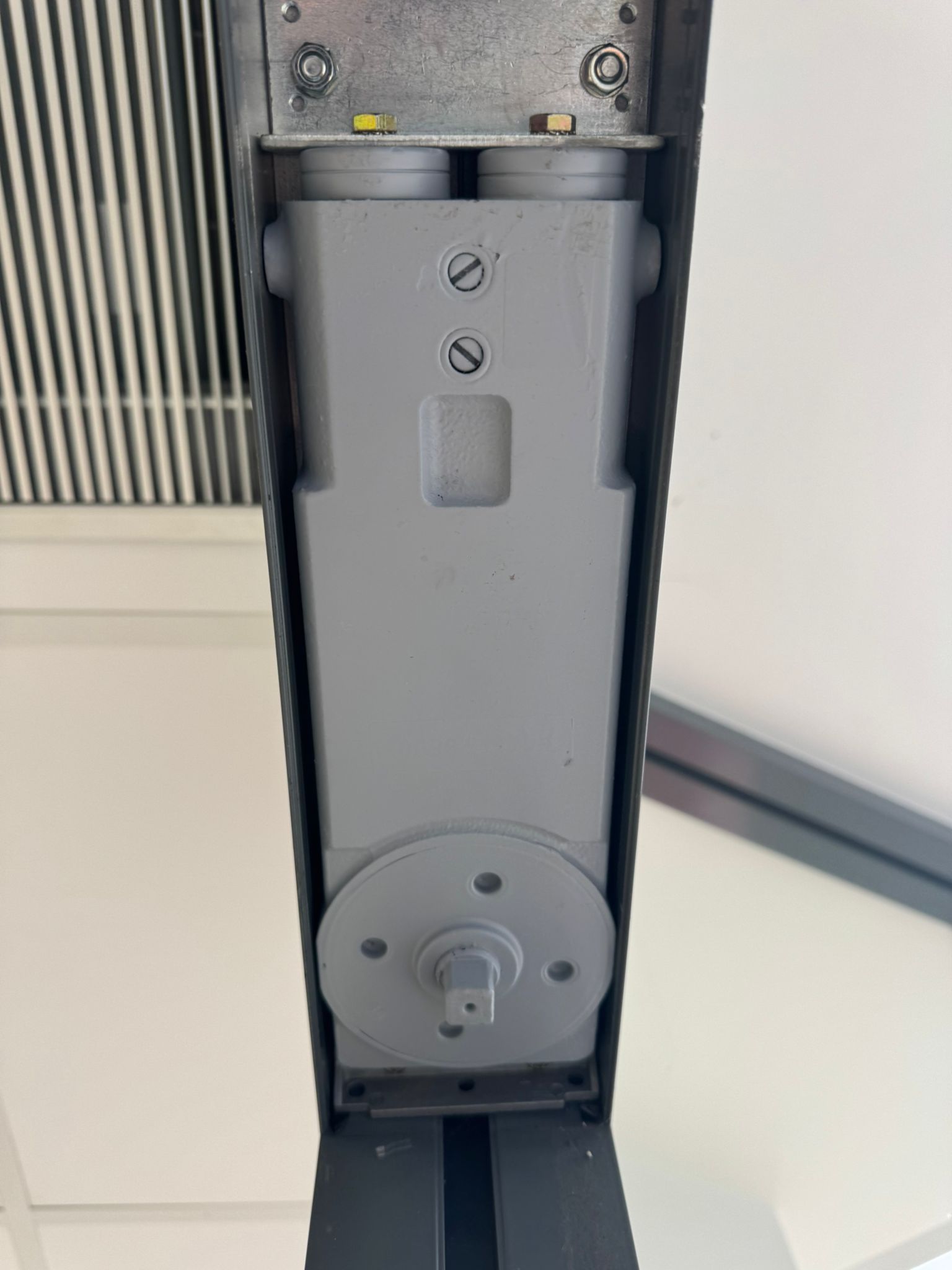

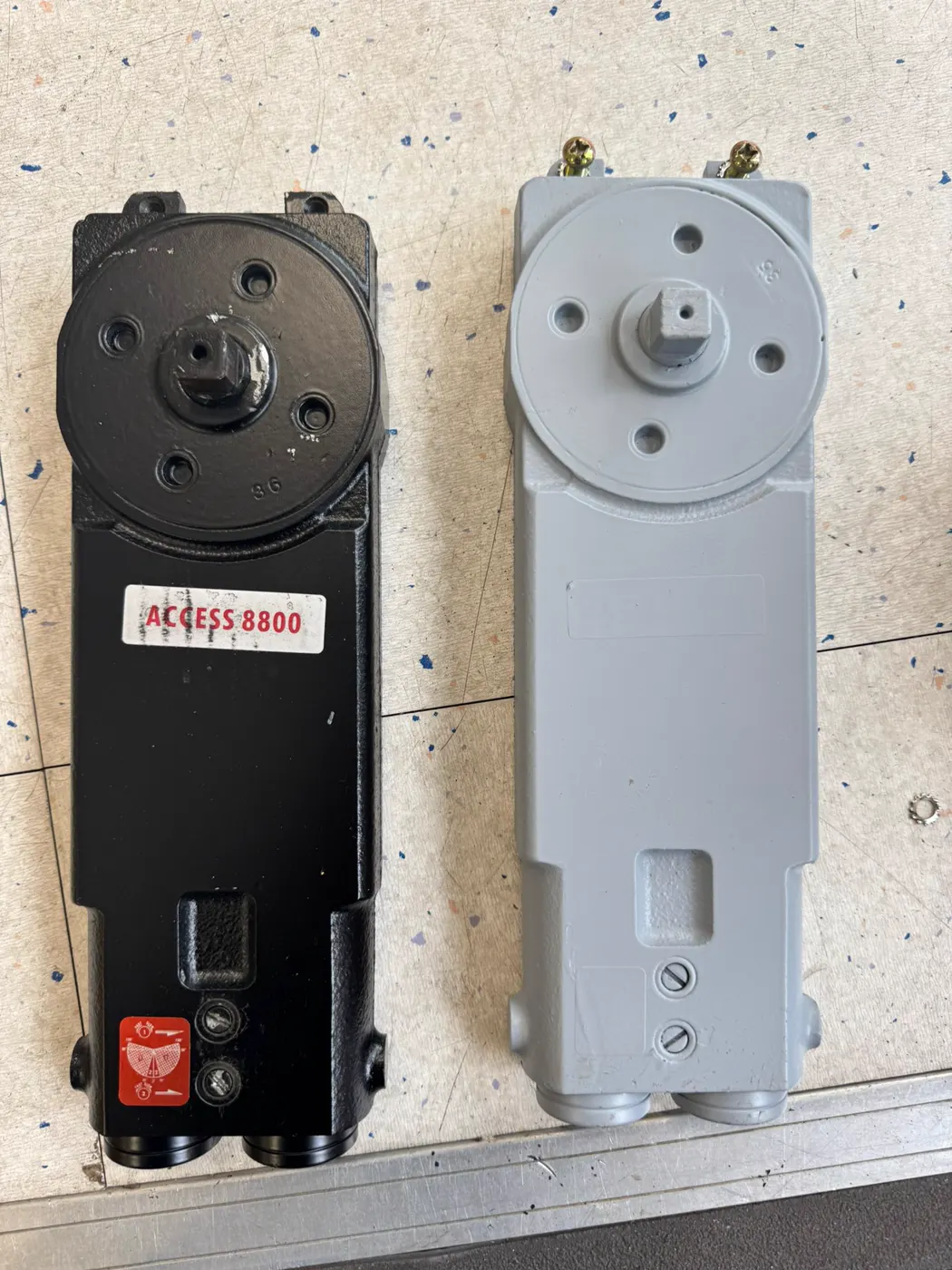

Our engineers attended site and carried out a standard transom closer replacement, restoring controlled closing action to the commercial entrance door. The transom closer is one of the most important components in a shopfront door system — it controls the movement of the door and ensures it closes safely after use. A worn or failing transom can cause the door to close too quickly, fail to return to the correct position, remain open, or place additional pressure on the pivots and locking hardware.
As part of the repair, we also replaced the bottom pivot. The bottom pivot carries and supports the door leaf, allowing it to swing correctly while maintaining the right position within the frame. When a bottom pivot becomes worn, loose or damaged, the door can drop, scrape, become difficult to use or fall out of alignment with the lock keep and frame. Replacing this part restored the door’s stability and allowed the entrance to operate reliably under continuous customer footfall.

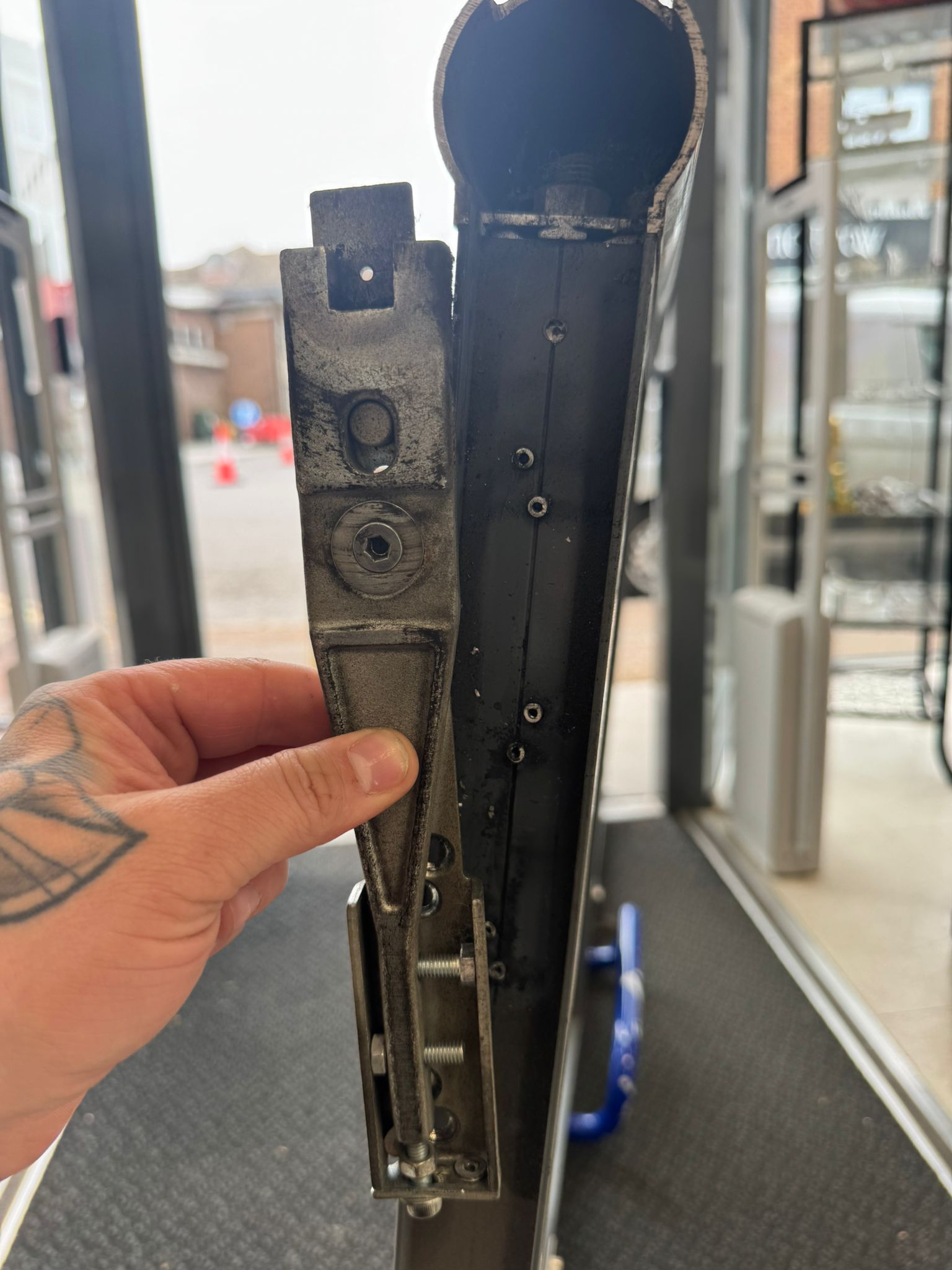

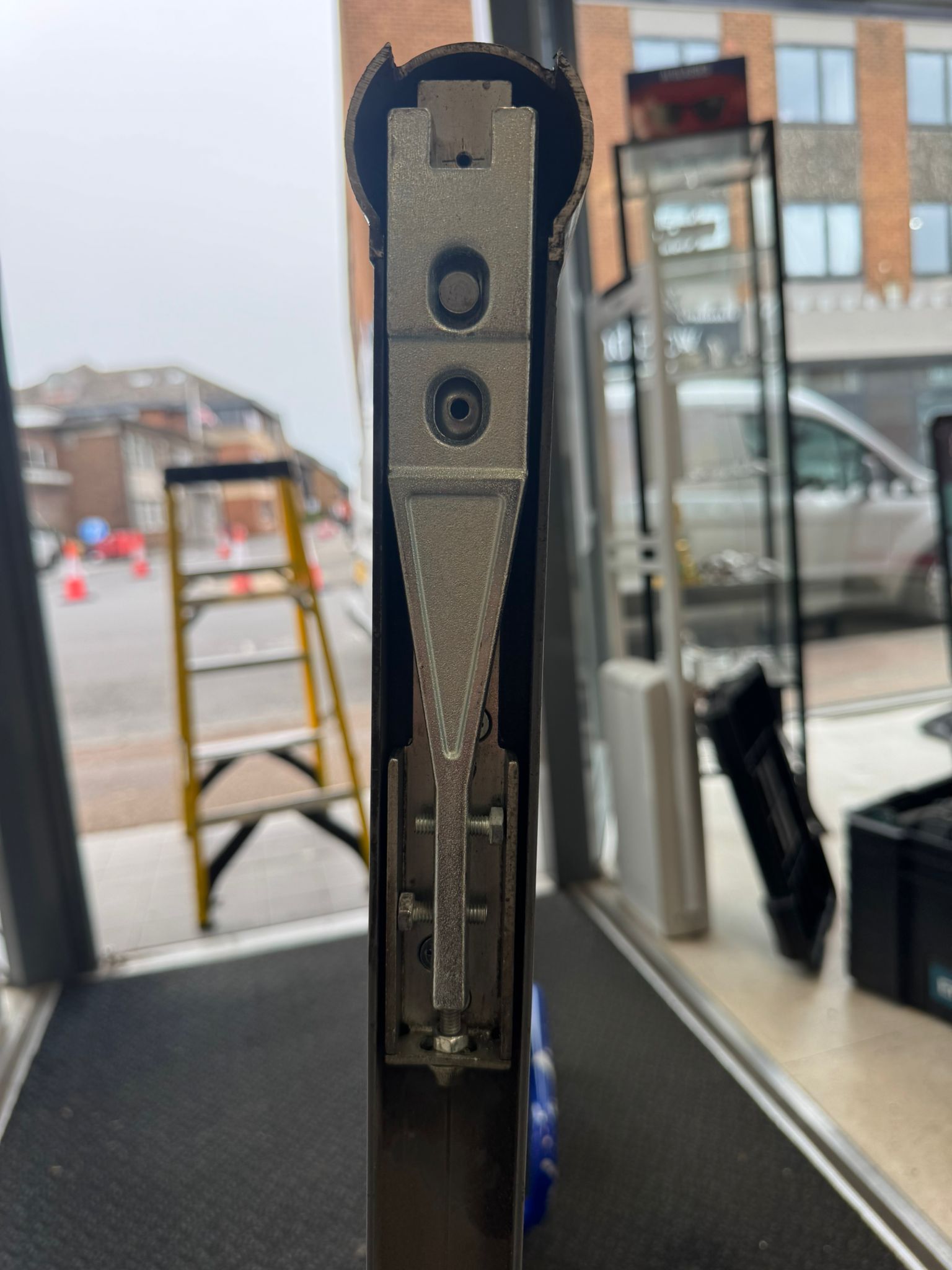

The repair also included a replacement end load drive arm — another essential part of the door control system. This component transfers movement between the door and the transom mechanism, ensuring the door opens and closes in a controlled, consistent manner. By replacing the worn drive arm, the door was returned to a smoother operating condition and the strain on surrounding hardware was reduced.
Door alignment to the latching plate and stop block
Once the main components had been replaced, our engineers carried out detailed alignment to the latching plate and stop block. Correct alignment is essential for both security and usability. If the latching plate is even slightly out of position, the door may not lock correctly, may need excessive force to close, or may leave the premises vulnerable outside trading hours. The stop block was also checked and adjusted so the door closed to the correct resting position without over-travelling or placing stress on the frame.
Why these repairs matter on a high street retail and healthcare premises
This type of job is a good example of preventative and corrective maintenance working together. Although the individual tasks may appear straightforward, replacing the correct components — and setting the door up properly afterwards — is essential on a commercial entrance. A poorly-adjusted door quickly leads to repeat faults, damaged locking points, customer access issues and avoidable future call-outs.
For a high street brand such as Boots Opticians, maintaining a safe, secure and easy-to-use entrance is particularly important. Customers — many of whom may have impaired vision while visiting an opticians — need clear and reliable access, while staff need confidence that the door can be locked and secured correctly at the end of the trading day. Our repair restored proper door function while supporting the professional appearance and day-to-day operation of the premises.
Components replaced in this Horley repair
- Transom closer — standard replacement to restore controlled, safe self-closing.
- Bottom pivot — renewed to lift and re-seat the door leaf within the frame.
- End load drive arm — new arm to transfer motion smoothly between door and transom.
- Latching plate — re-aligned for clean, positive latching at the end of each cycle.
- Stop block — checked and adjusted to set the correct closed resting position.
