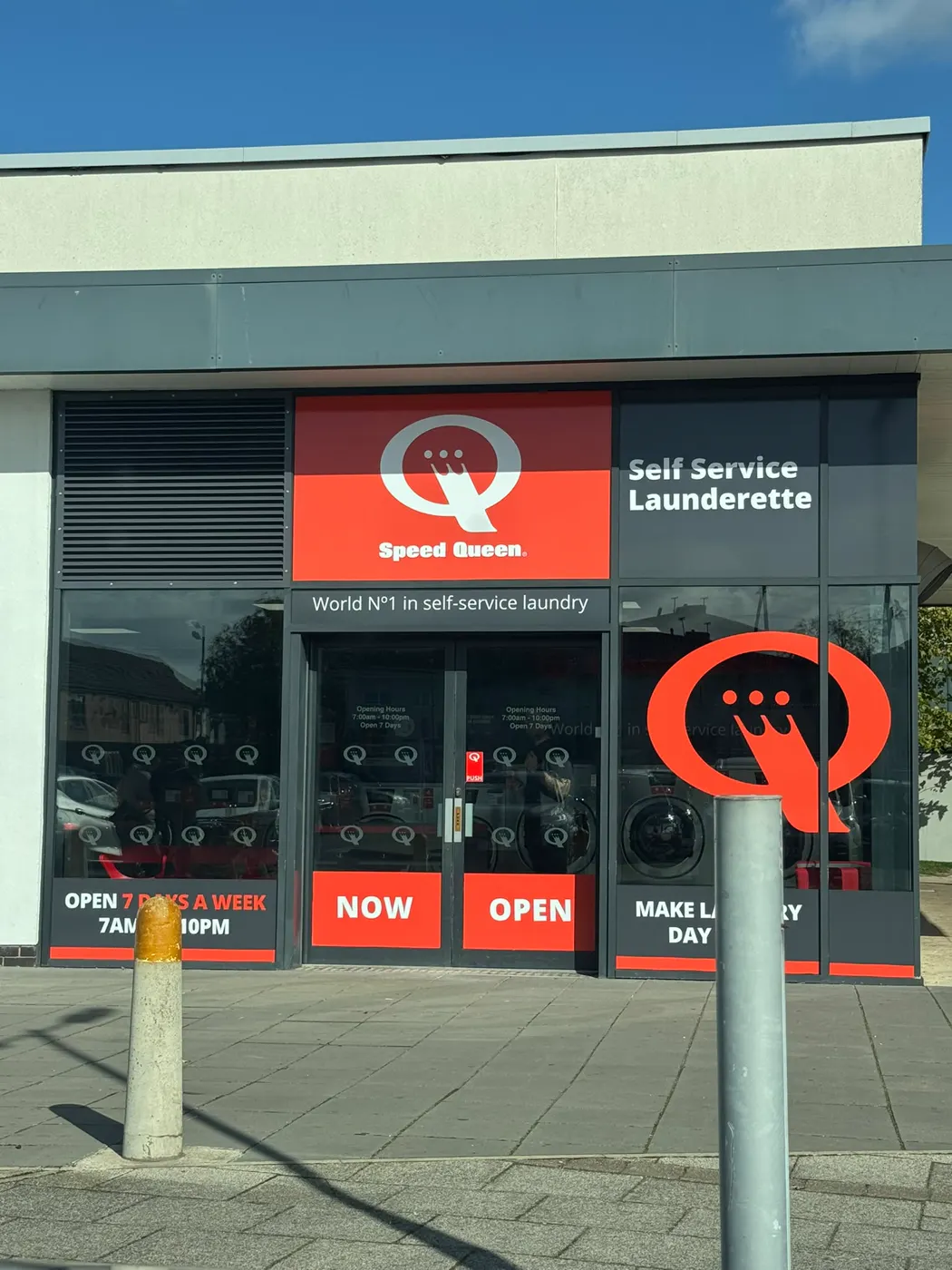

Case study · Speed Queen self-service launderette, Liverpool
What a high-cycle shopfront door does to a concealed closer

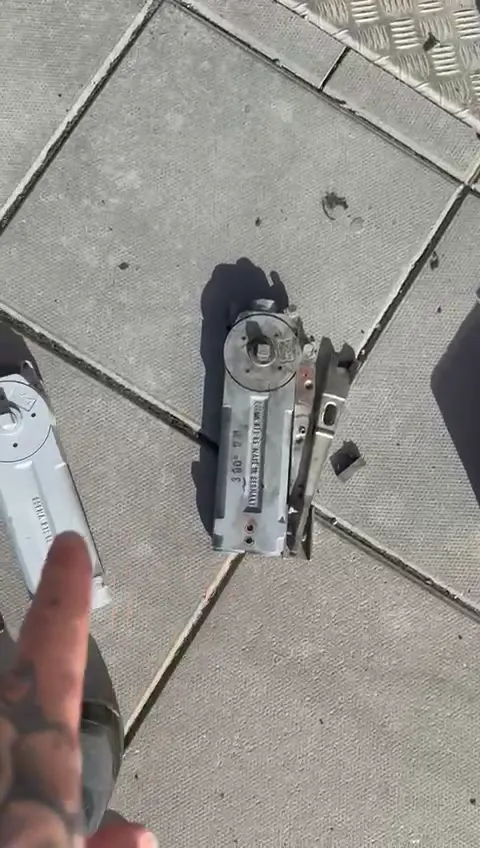

Most of the transom closers we replace have failed slowly over a decade or more. A launderette compresses that timeline. Every customer makes at least two trips through the door — in with the washing, out again, back for the dryer — and the doors are propped, pushed with a hip and let go on the swing from first thing until late evening. Both units at this Speed Queen had reached the same point: the spindle bearing had worn oval, the closing speed would not hold a setting and the leaves either hung open or swung uncontrolled. The two removed closers are on the pavement in the photographs, with the arm channels beside them.

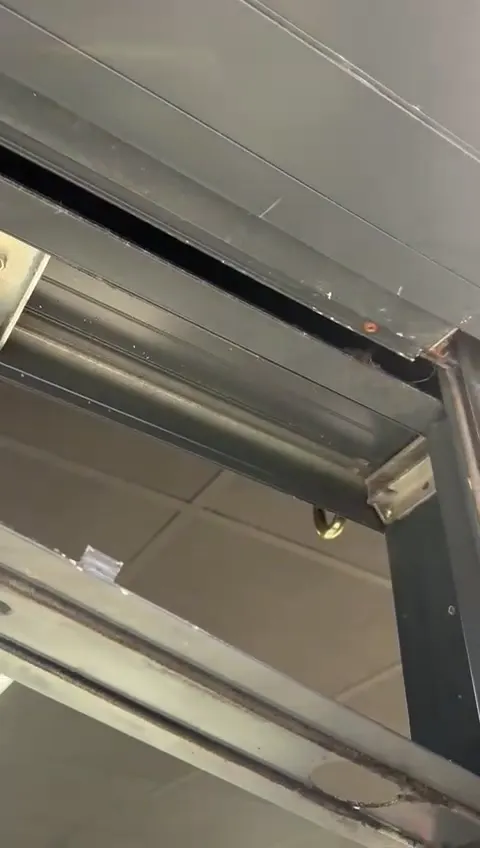

The replacement is the same job on each leaf. The door is lifted off its bottom pivot and set to one side, the cover plate comes off the head of the frame and the old closer and its mounting plate are unbolted from inside the aluminium transom box. The photograph looking straight up into the open box shows how little room there is — the box is sized for the closer body and nothing else, which is why the replacement unit has to be the right pattern for the section rather than “a closer that fits”. The new body and plate go in, the arm drops into a new channel in the top rail of the leaf, the door is re-hung and the closing and latching speeds are set from the valves on the end of the unit.
Checking the lock once the closers were set

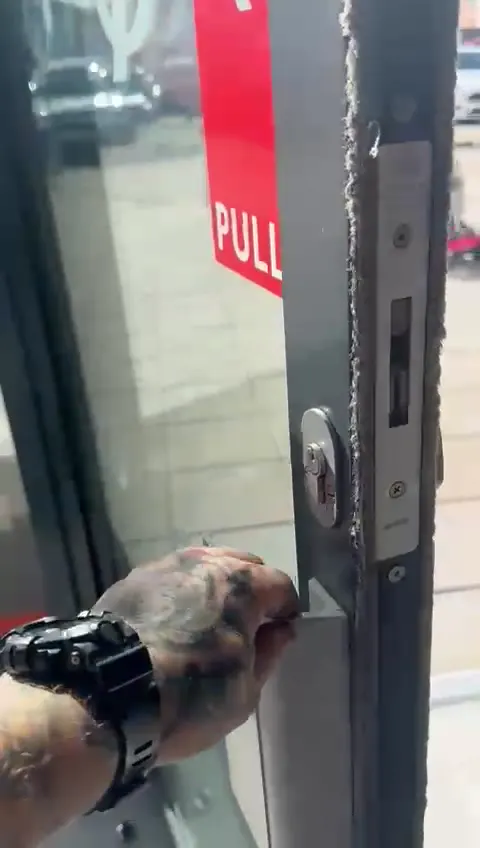

A new closer pulls the leaf home harder and more consistently than a worn one, which can expose a latch or keep that has been getting away with a lazy door. The close-up of the lock edge on the active leaf is that check: with both doors swinging under control the mortice latch was meeting the keep squarely and throwing fully, so no adjustment was needed. On a door that is locked and unlocked twice a day and used hundreds of times in between, it is a thirty-second check worth doing before the engineer leaves.
Work completed at Speed Queen, Liverpool
- Transom closers — two worn concealed closers removed from the head of the double entrance and replaced with new units and mounting plates.
- Arms and channels — new slide arms and top-rail channels fitted to both leaves.
- Re-hang and commissioning — both leaves re-hung on their pivots, closing and latching speeds set, meeting stiles checked for alignment.
- Lock check — mortice lock and latch on the active leaf checked against the keep with the new closers in action.
- Trading — launderette open throughout; one leaf worked on at a time.
Shopfront door repairs across Liverpool and Merseyside
Commercial Door Maintenance and Security Ltd covers Liverpool from the retail parks and neighbourhood parades out through Speke, Aintree, Bootle and Kirkby to the Wirral. Launderettes, convenience stores, takeaways and vape shops all run the same long trading hours on the same aluminium shopfront doors, and the failure pattern is the same: worn closers, dropped pivots, latches that stop meeting the keep. Send us a photograph or a short clip and we will quote the same day, turn up with the right closer pattern for your transom section and keep the door in use while we work. We also handle aluminium door repairs, bottom pivots and panic hardware across Merseyside.
