Case study · Speed Queen, Thornaby
Why the whole kit, not just the closer
A concealed transom closer does its work through two other parts: the side arm that links its spindle to the top of the door, and the channel in the top rail that the arm’s end slides along as the door swings. All three wear together. The arm’s pivot pins loosen, the slider in the channel grooves its track, and by the time the closer itself has lost its hydraulic control the arm and channel are usually rattling. Fit a new closer to that arm and the first thing it does is hammer the slack out of the old joints — the door knocks, the new unit works harder than it should, and the job comes back.

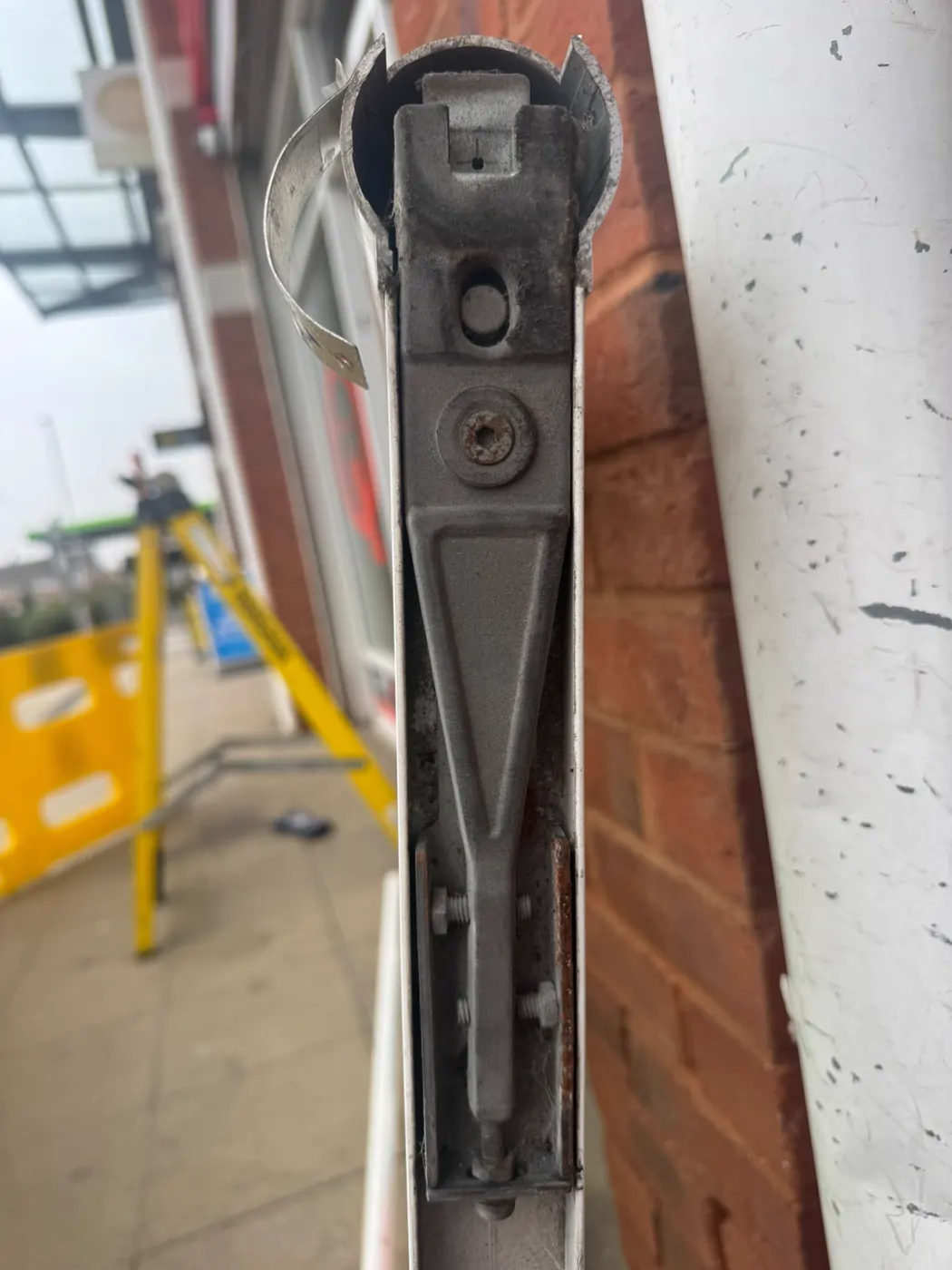

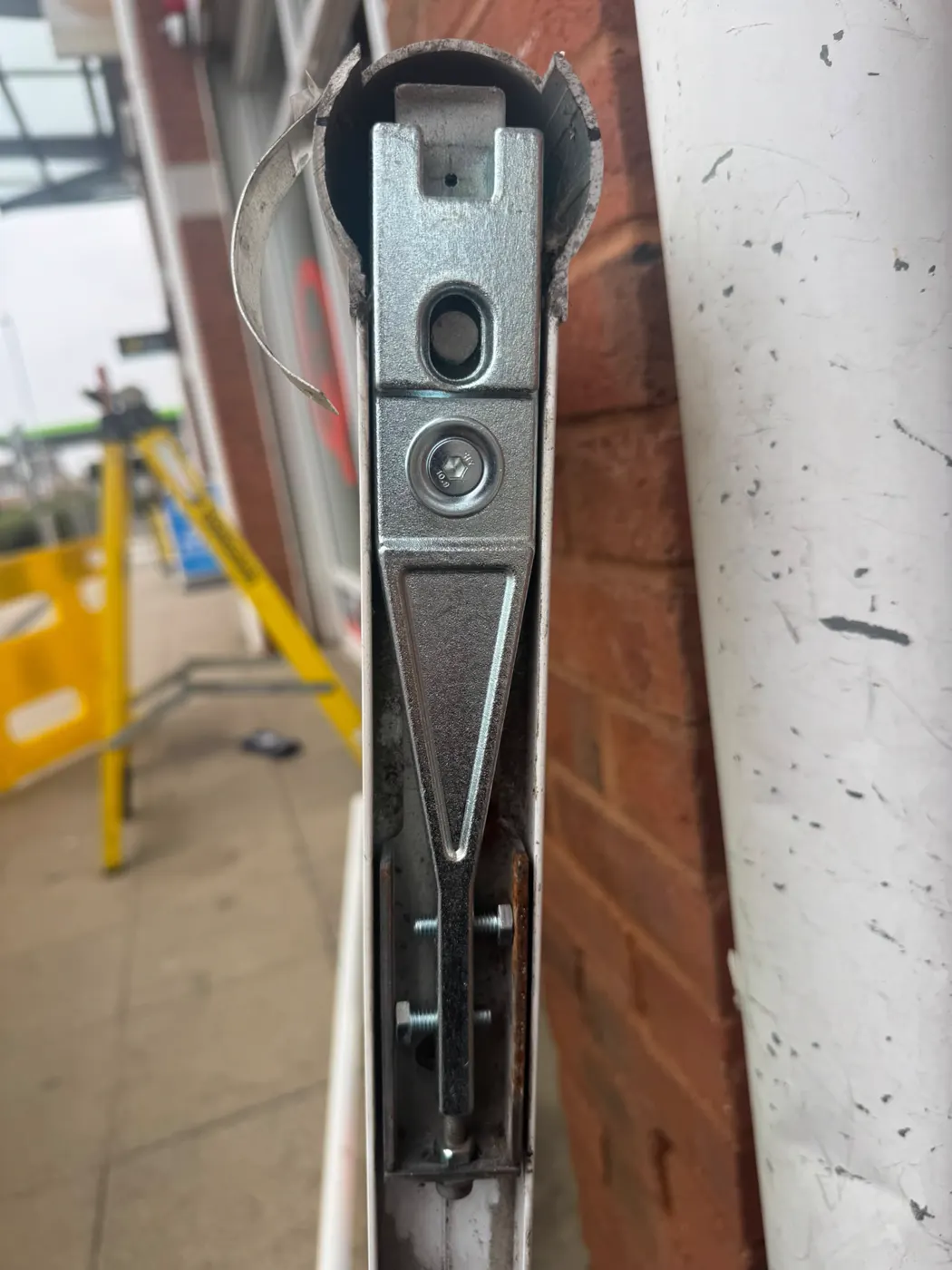

At Thornaby the photographs tell the story. The old arm in the top rail had rusted at its fixings and worn at the slider; the new zinc-plated arm and channel sit in the same rail looking like a different door. That is what a transom closer kit is: the closer, the arm and the channel as a matched set, installed together so the door starts its working life with no wear anywhere in the chain.
The ARC-51N and what replaced it

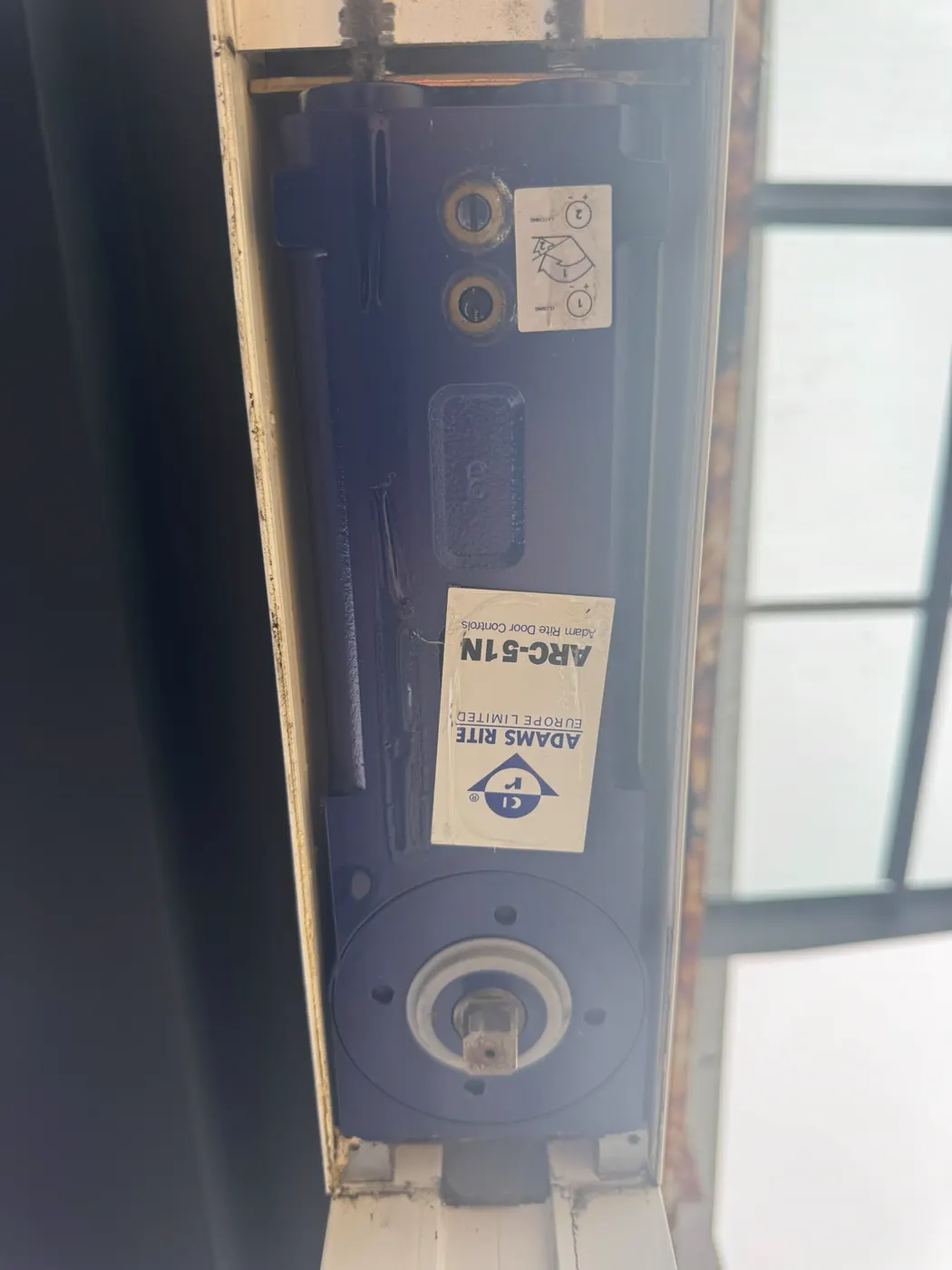

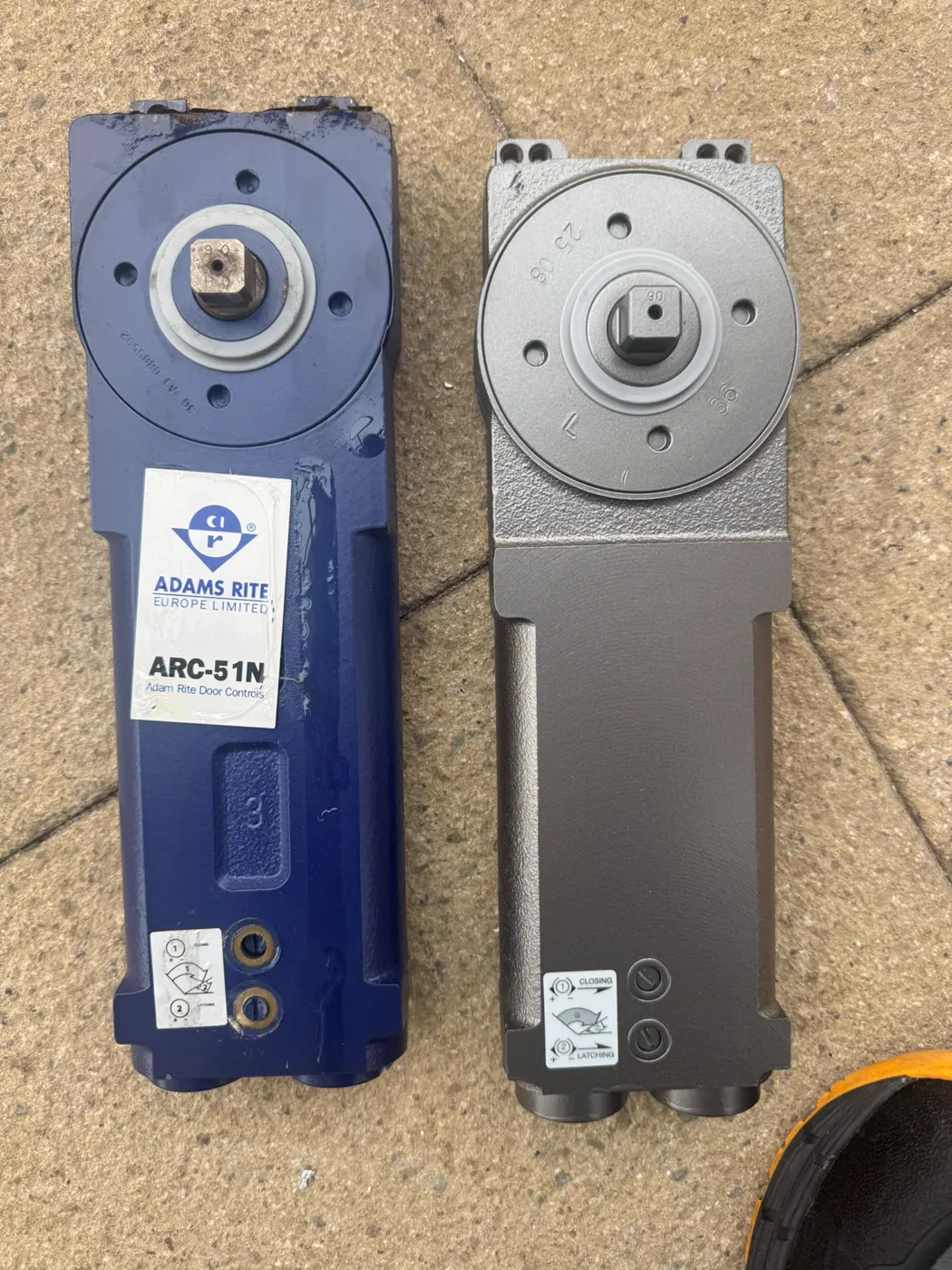

The old closer was an Adams Rite ARC-51N, a concealed closer we see on a great many aluminium shopfront doors of this generation and have replaced on other sites, among them the Volkswagen Van Centre in Liverpool. It had done its time. The replacement is a current concealed closer of the same format, with the closing and latching speeds set once the door was back on and swinging freely. The before-and-after photograph of the two units side by side on the paving is on this page.
Fire exit, main entrance, fifteen hours a day

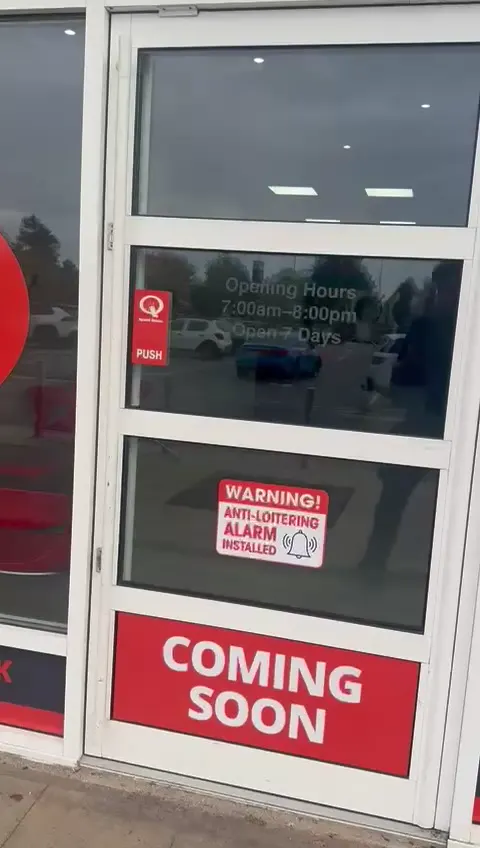

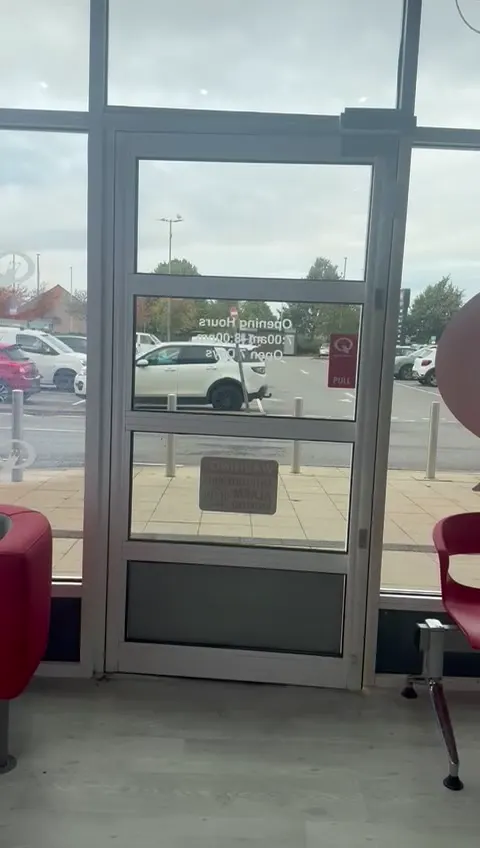

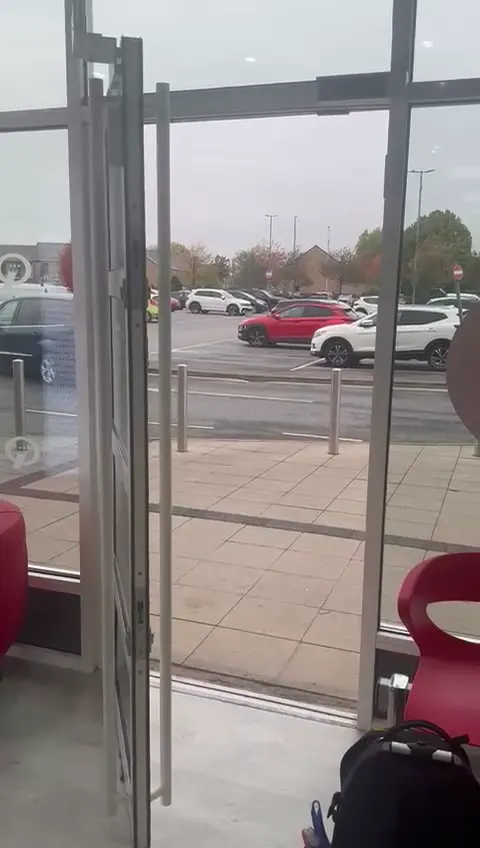

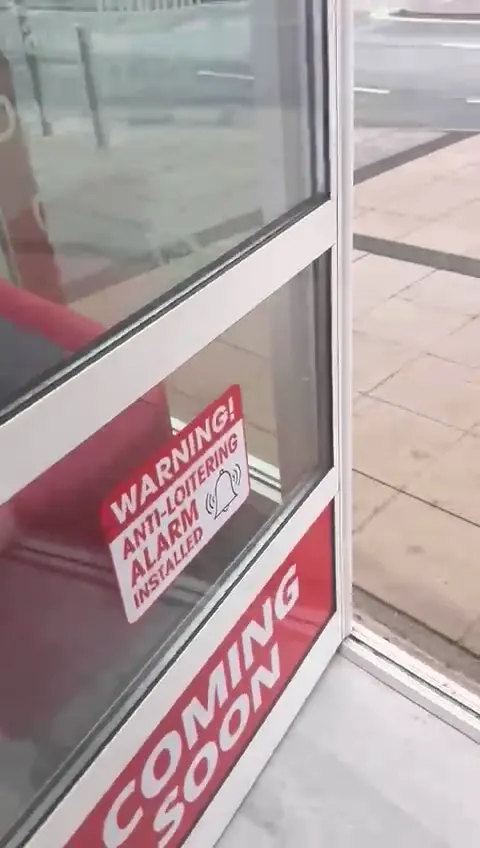

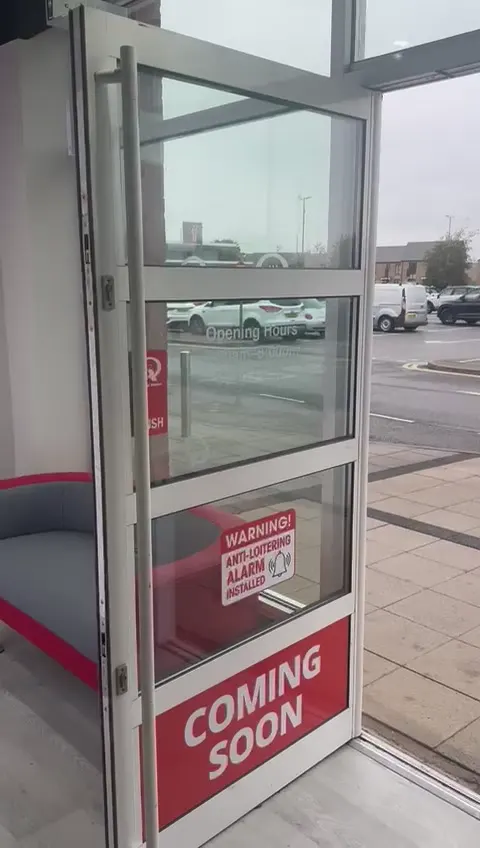

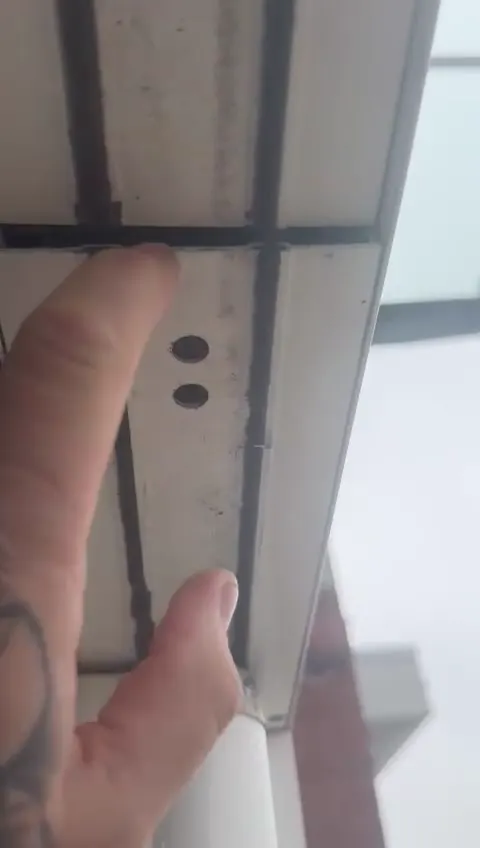

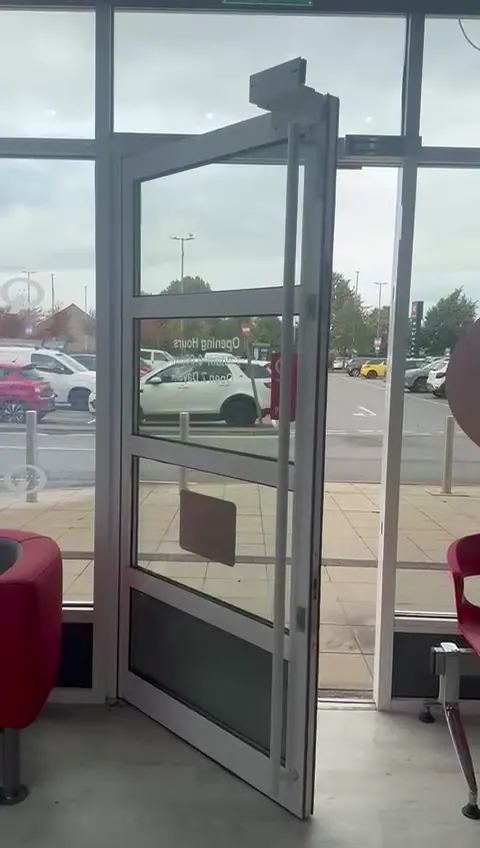

The door carries a running-man sign above it inside and a push plate on the leaf, because on this unit the front door is also the fire exit. That shapes how the closer is set: the door must open with light pressure from inside and come back to the latch every time without slamming, so that the exit is never left standing open and the hardware is not shaken loose by the thousandth closing of the week. Speed Queen launderettes run seven days from early morning to evening, which is the same duty cycle we set up for at the Liverpool store. The two short clips on this page show the door being checked at the head and then swinging closed from inside on the new kit.
Work completed at Speed Queen, Thornaby
- Scope — maintenance and repairs to the front main entrance fire exit door of the new store, ahead of opening.

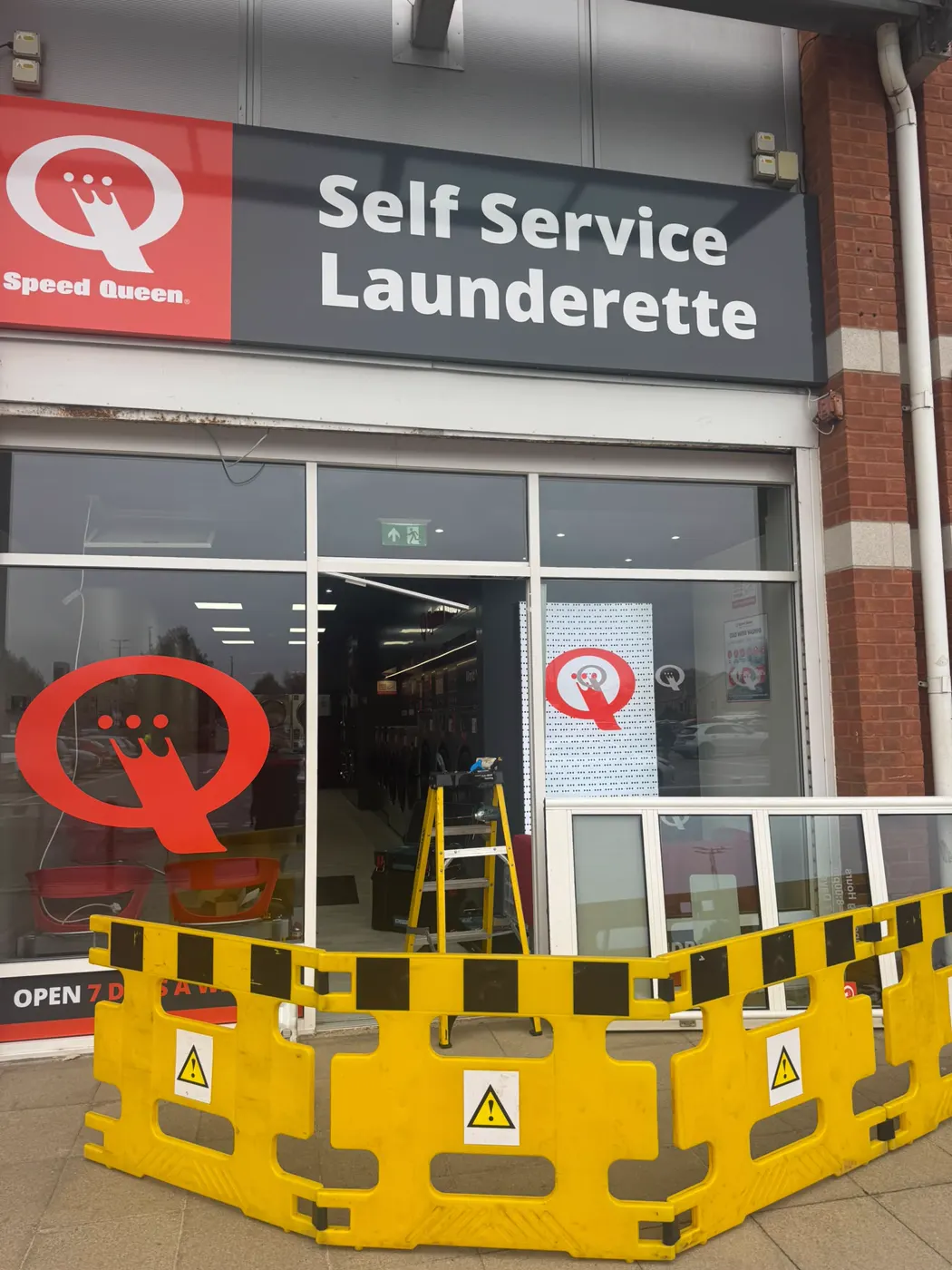

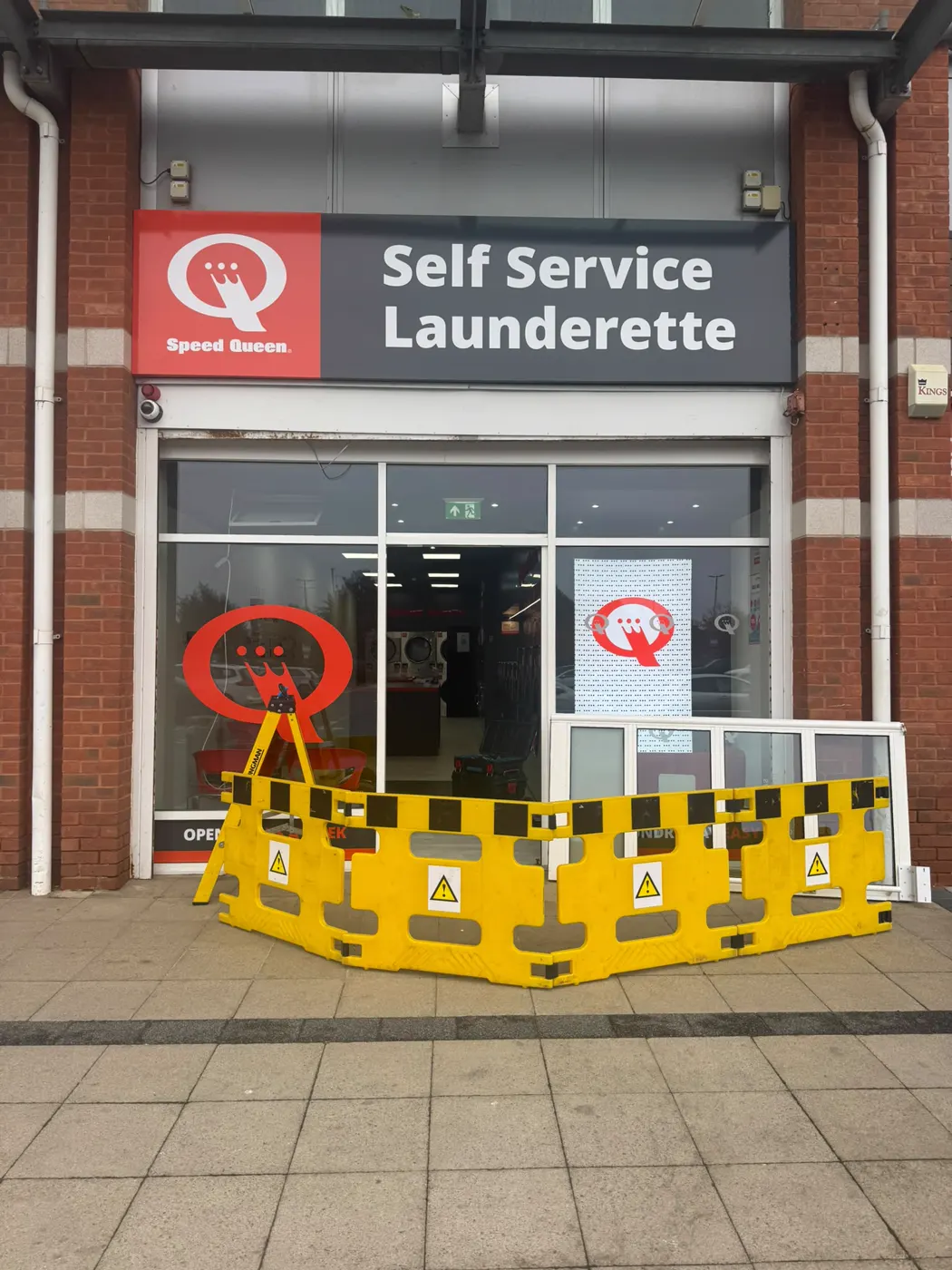

- Access — entrance barriered on the pavement; store empty and unopened, no customer traffic to manage.
- Removal — Adams Rite ARC-51N closer, worn side arm and channel stripped from the transom and top rail.
- Installation — one complete transom closer kit fitted: new concealed closer, new side arm, new channel, on the existing fixing positions.
- Service — pivots and push-side hardware checked; closing and latching speeds set for a fire exit on a seven-day store.
- Handover — door left in good working order before the launderette opened to the public.
Commercial door repairs on Teesside
Commercial Door Maintenance and Security Ltd attends Thornaby, Stockton-on-Tees, Middlesbrough and Darlington as part of its national coverage for retail chains and multi-site operators. New-store snagging on inherited shopfronts — closers, pivots, locks and panic hardware that were never on the fit-out schedule — is a regular part of that work, alongside emergency call-outs once a store is trading. Send a photograph of the door head and the top rail and we will tell you what closer is in it and quote the kit the same day. Our retail sector page covers how we work around trading hours and opening dates.
